AIRdesign PURE 2 EN/LTF D

AIRdesign PURE 2 EN/LTF D

¥27000原价：￥30000
    VORTEX HOLES® atthe tips and outside cell trailing edges work to diffuse vortex drag byreleasing redundant pressure, which is further improving performance.

    详情描述

    设计特点：

    ThePURE 2 features a more pronounced shark-nose, double 3D-cut top-sail with flatseams and a single 3D-cut bottom-sail.

    A special 2-lineaerofoil in combination with a detailed and ingenious inner construction (withv-ribs, straps and cross supports) ensures maximum stability.

    VORTEX HOLES® atthe tips and outside cell trailing edges work to diffuse vortex drag byreleasing redundant pressure, which is further improving performance.

    A redeveloped linelayout (in some cases spanning over 4 cells without line attachment points)greatly reduces line consumption.

    Polyamide rods arestrategically positioned at A and B sections, with sufficient spacing to allowyou to pack more ergonomically.

    Comfortable andprecise B-steering handles.

    技术数据：

    SIZES

    S

    SM

    M

    L

    AREA FLAT (m²)

    20,93

    22,57

    24,10

    26,21

    AREA PROJECTED (m²)

    17,87

    19,27

    20,58

    22,38

    SPAN FLAT (m)

    12,09

    12,55

    12,97

    13,52

    SPAN PROJECTED (m)

    9,62

    9,99

    10,32

    10,76

    ASPECT RATIO FLAT

    6,98

    6,98

    6,98

    6,98

    ASPECT RATIO PROJ.

    5,18

    5,18

    5,18

    5,18

    CELLS

    70

    70

    70

    70

    TOTAL LINE LENGTH

    242

    252

    260

    271

    TOTAL LINES

    222

    222

    222

    222

    LINE DIAMETERS (mm)

    0.5/0.7/0.8/1/1.1/1.3/1.5/1.7

    WEIGHT (kg)

    5,5

    5,8

    6,1

    6,4

    V-TRIM/V-MAX (km/h)

    39/60

    39/60

    39/60

    39/60

    EN/LTF CATEGORY

    D*

    D*

    D

    D*

    TAKE OFF WEIGHT (kg)

    70-85

    80-95

    90-105

    100-120

    Materials：

    Sail:

    Top Sail: DOMINICO - DOKDO-30DMF(WR)  40 Gramm

    Bottom Sail: DOMINICO - N20DMF(WR) 35  Gramm

    Ribs: Dominico 30D hard

    Risers: 13mm Aramid with Polyester covered  - LIROS

    Lines:

    Top lines: EDELRID 8000/U-050,070 and  090

    Middle lines: EDELRID 8000/U-130 and  190

    Main lines: EDELRID  8000/U-190,230,280,360

    Maillons: 4,3mm JOO-TECH/Korea

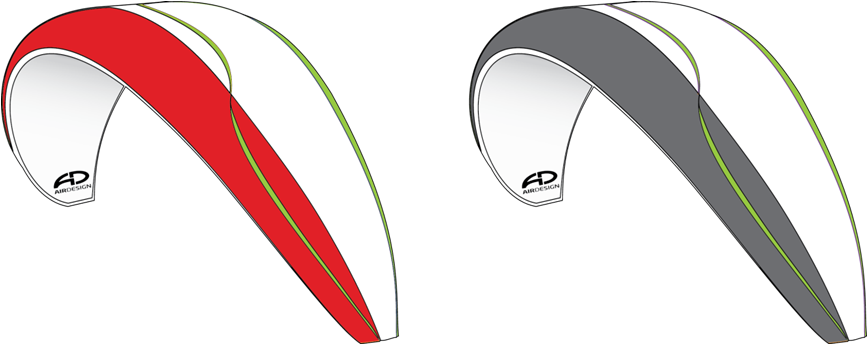

    颜色：红色、灰色


    Youcan design your own glider using our custom colour picker. Stand out from thegaggle with your own colour combination.
     To get a quote and estimated deliverytime for your custom colour simply copy and email the linkof the colourpickerto your local distributor.
